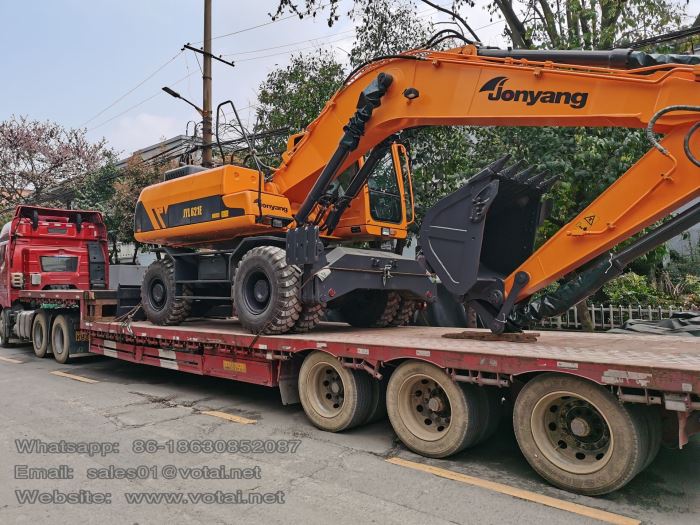

Jonyang Wheel Excavator JYL621E Ready for shipment to Tajikstan
Jonyang 21 ton Wheeled Excavator JYL621E
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
JYL621E Wheeled Excavator
Main parameter:
Weight: 21 t
Bucket Capacity: 0.9 m³
Power: 129 kw
Application Range:
Water conservancy and electric power construction, Mining, Road construction, Airport and port construction, Urban construction, Municipal construction and Pipeline laying projects.
Features
● Original imported Cummins engine features Euro II emission standards, strong power and intake heating system.
● International renowned brand hydraulic components ensures high reliability of the hydraulic system.
● High resolution LCD instruments for excellent legibility and easier operation .
● Enhanced one-piece chassis features high strength and durability.
● Cab uses anti-rollover and falling objects protection devices, which meet the safety standards in various regions including China, EU, North America, etc. and the cab has gained TOPS and FOPS certification.
● Larger cooling device ensures strong power in high temperature environment.
● Engine hood and compartment covers are easy to open for convenient daily maintenance.
Specifications
Machine weight: 21000kg
Bucket capacity: 0.90 m 3
Engine Model: Cummins 6B-5.9
Rated power: 129 kW / 2000 rpm
Displacement: 5.9 L
Hydraulic flow rateL 2x200 L/min
Hydrualic pressure: 30 Mpa
Performance
Gradeability: 40%（22 °）
Travel speed: 28 km/h
Slewing speed: 12.5 r/min
Bucket digging force: 120kN
Arm digging force: 90 kN
Travelling speed: 0-8/28 km/h
Operating Scope
Stick length: 2600 mm
Maximum cutting height: 9665 mm
Maximum dumpint height: 6900 mm
Maximum digging depth: 5915 mm
Maximum reach : 9615 mm
Undercarriage
Number of tires: 6
Model: 12.5-20-18PP
Tire width: 370mm
Oils and coolant capacity
Fuel tank: 280 L
Hydraulic oil tank: 200 L
Engine oil tank: 24 L
Antifreezing agent: 25 L
Related machinery:
Wheel Excavator model:
JYL6085 Weight 7.8 t Bucket Capacity 0.32 m³ Power 60KW
JYL615E-N Weight 13.7t Bucket Capacity 0.6 m³ Power 85.4 KW
JYL615F Weight 14.5t Bucket Capacity 0.6m³ Power 110KW
JYL619E Weight 20t Bucket Capacity 0.8 m³ Power 129 KW
JYL621ELD Weight 21t Bucket Capacity 0.48 m³ Power 129 KW
JYL621E Weight 21t Bucket Capacity 0.9 m³ Power 129 KW
JYL621F Weight 21.6t Bucket Capacity 0.92m³ Power 129KW
Crawler Excavator model:
JY6085 Weight 8.2 t Bucket Capacity 0.35 m³ Power 60 KW
JY615E Weight 14.7t Bucket Capacity 0.6 m³ Power 85.4KW
JY615F Weight 14.7t Bucket Capacity 0.6m³ Power 90KW
JY621E Weight 21t Bucket Capacity 0.9 m³ Power 112 KW
JY623E Weight 23 t Bucket Capacity 1 m³ Power 133 KW
JY623F Weight 25t Bucket Capacity 1.1m³ Power 129KW
JY625E Weight 25t Bucket Capacity 1.2m³ Power 133KW
JY630E Weight 30.8t Bucket Capacity 1.38m³ Power 198KW
JY645E Weight 45t Bucket Capacity 2.0m³ Power 250KW
Scrap Handler model:
JY625E-G Weight 25t Bucket Capacity 0.5m³ Power 133KW
JY640E-G Weight 40 t Bucket Capacity 1 m³ Power 194KW
JY645-GD Weight 45 t Bucket Capacity 0.8m³ Power 132KW
