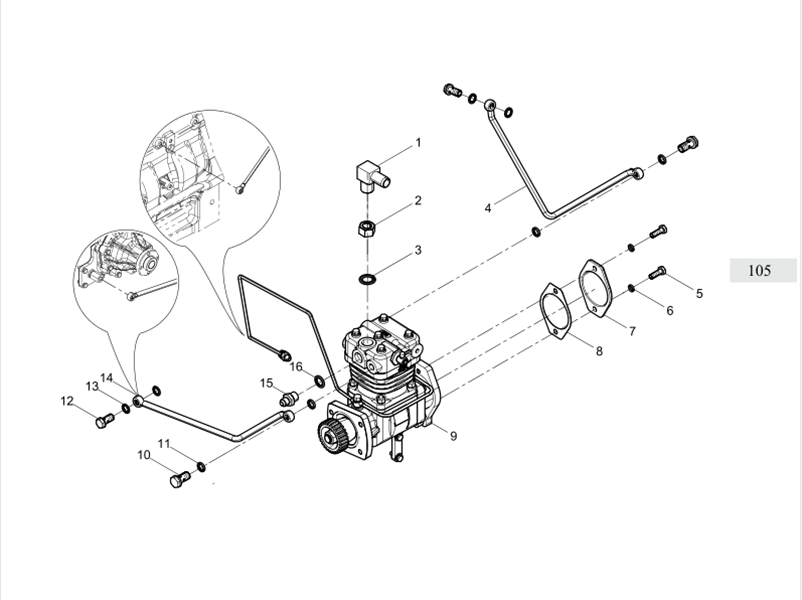

| No |
Part Number |
Part Name |
Part Name |
Quantity |
Remark |
Inventory |
| 1 |
13025658 |
空压机进气接头 |
Air inlet adapter of air compressor |
1 |
|
|
| 2 |
13025659 |
锁紧螺母 |
Screw nut |
1 |
|
|
| 3 |
13025995 |
密封垫圈 |
Washer |
1 |
|
|
| 4 |
13024433 |
空压机回水管 |
Air compressor water outlet pipe |
1 |
|
|
| 5 |
01112405 |
六角头螺栓 |
Screw |
2 |
|
|
| 6 |
01178365 |
弹性垫圈 |
Washer |
2 |
|
|
| 7 |
13025660 |
空压机盖板 |
Air compressor cover shield |
1 |
|
|
| 8 |
13024417 |
液压泵密封垫 |
Sealing gasket |
1 |
|
|
| 9 |
13035427 |
空压机组件 |
Air Compressor Assembly |
1 |
|
|
| 10 |
01119248 |
空心螺栓 |
Hexagon bolt with wire hole on head |
2 |
|
|
| 11 |
13023361 |
组合密封垫圈 |
Sealing ring |
4 |
|
|
| 12 |
01119243 |
空心螺栓 |
Hexagon bolt with wire hole on head |
2 |
|
|
| 13 |
612600080200 |
密封垫圈 |
Washer |
4 |
|
|
| 14 |
13024432 |
空压机进水管 |
Air comprossor water-inlet pipe |
1 |
|
|
| 15 |
13025291 |
接头 |
Tie-In |
1 |
|
|
| 16 |
01118737 |
密封垫圈 |
Washer |
1 |
|
|
